Engineered for Speed & Stability – Delivers near-identical aerodynamics to a full disc wheel while ensuring superior crosswind stability—ideal for demanding, windy races like Ironman Kona.
BIKEDOC Aero 180MM Carbon Rim Road Disc 700C Gravel Rims Track Bicycle 120MM Depth Time Trialthlon Race Rim Tubeless Toray 800
Product name:High profile carbon rim
Material:Toray 700+Toray 800
Size:700C
Spoke Holes:20H ,24H,28H

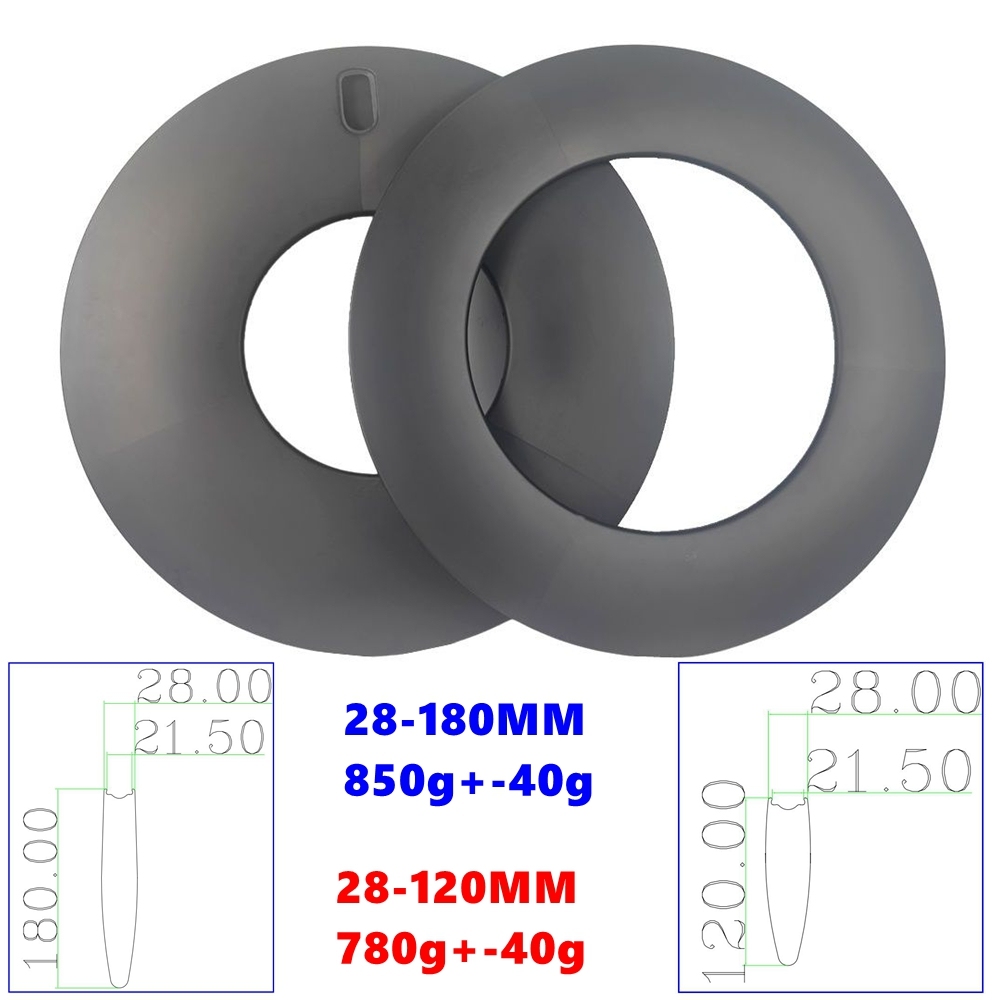

External width for carbon rim:28mm
Internal width for carbon rims:21.5mm
Weight reference:

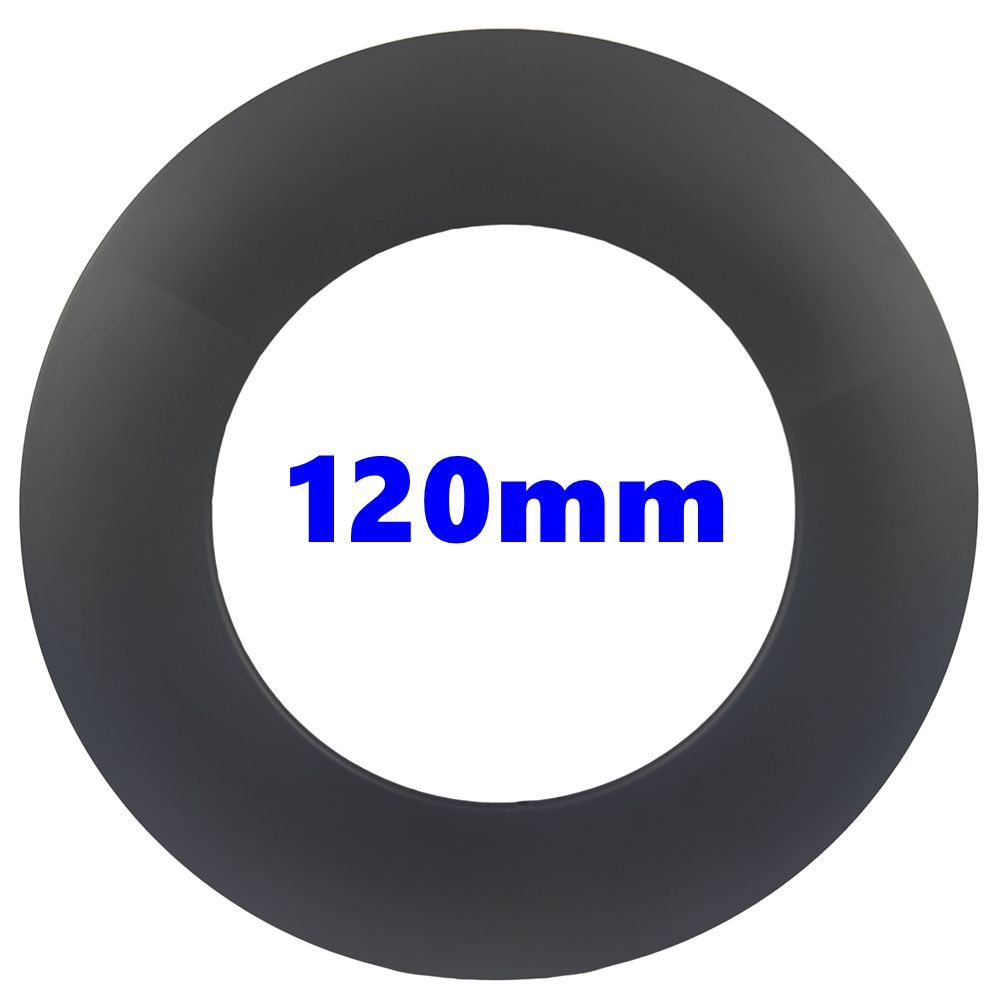

120mm profile :780g+-50g

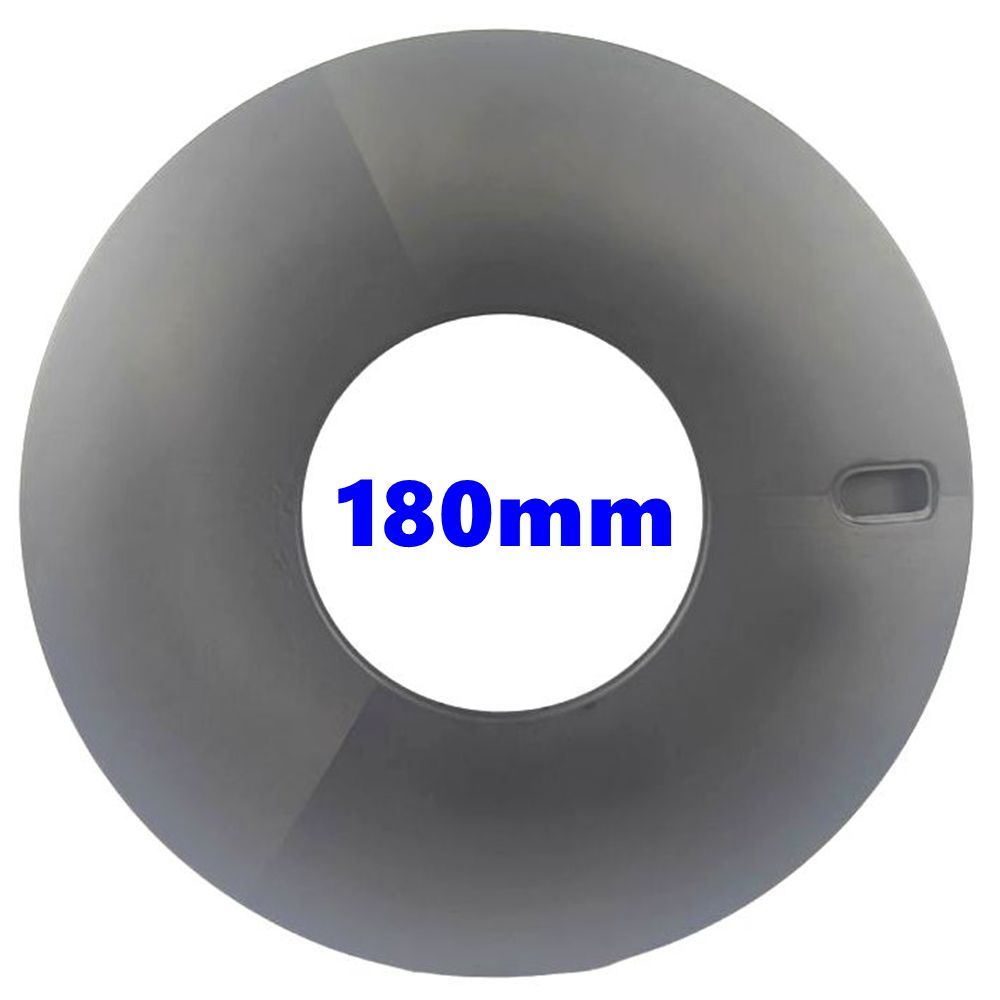

180mm profile:850g+-50g
Max tire pressure: 130 psi
Max spoke tension: 120~135kgf front disc side and rear drive side
Rider rider weight : 135kg/ 298lbs

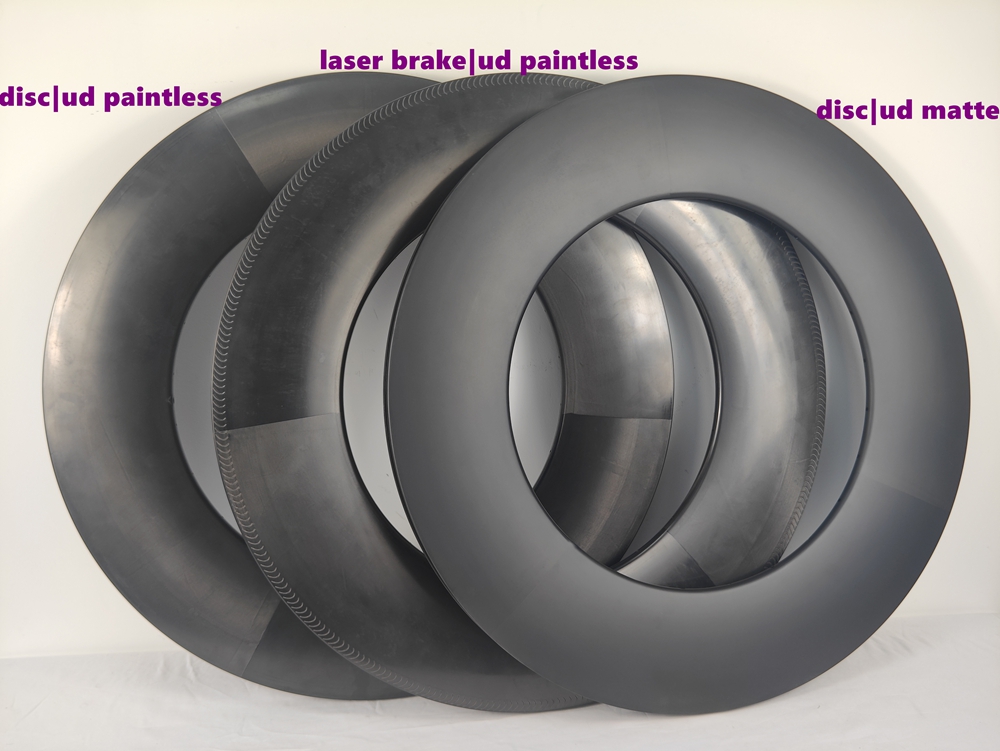

Carbon weave:3k,ud ,marble
External nipple:4.5mm
Internal nipple:2.5mm
Offset:symmetric (0mm)
ERD: 279mm (not including nipple head dimension)
Feature:Hook Tubeless
Usage:Road ,Track,Gravel,Time Triathlon
Q:What is tire pressure for your carbon wheels?
A:For road wheels,maximum 125 psi,for mtb wheels ,maximum 60 psi,for bmx wheels ,maximum 30 psi .
Q:What is spoke tension?
A:Our carbon wheels can do maximum 130kg spoke tension .
Q:Are your clincher rims tubeless ready?
A:Yes ,all our bikedoc carbon rims can be used as both tubeless and clincher , they are compatible.
