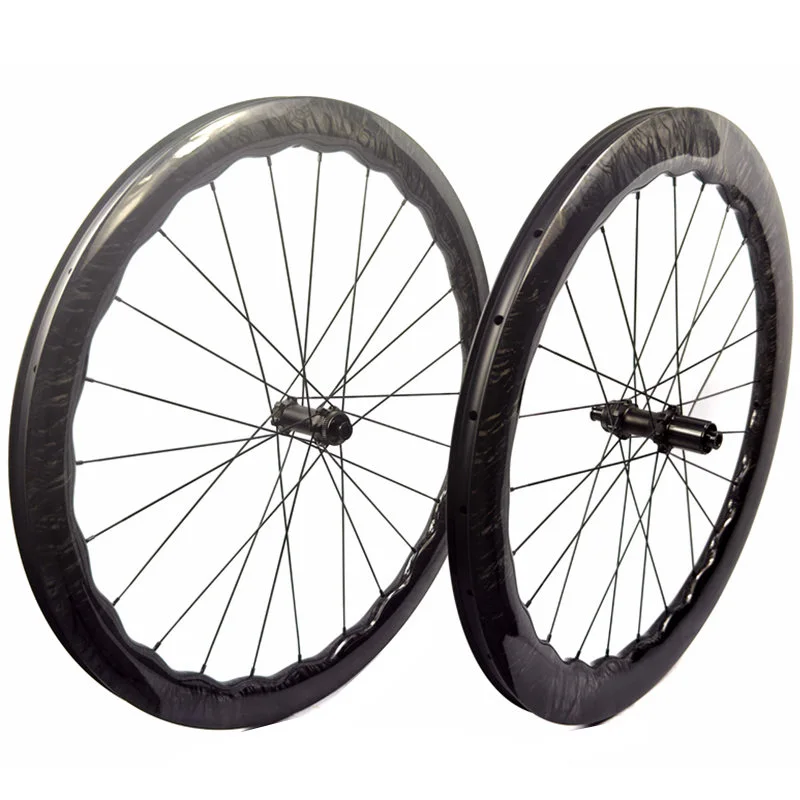

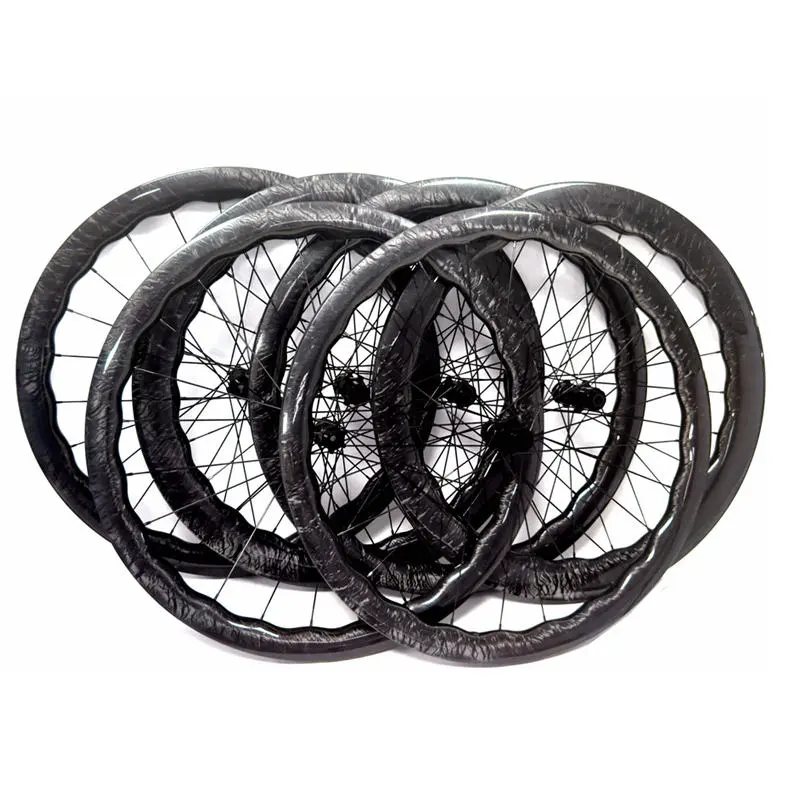

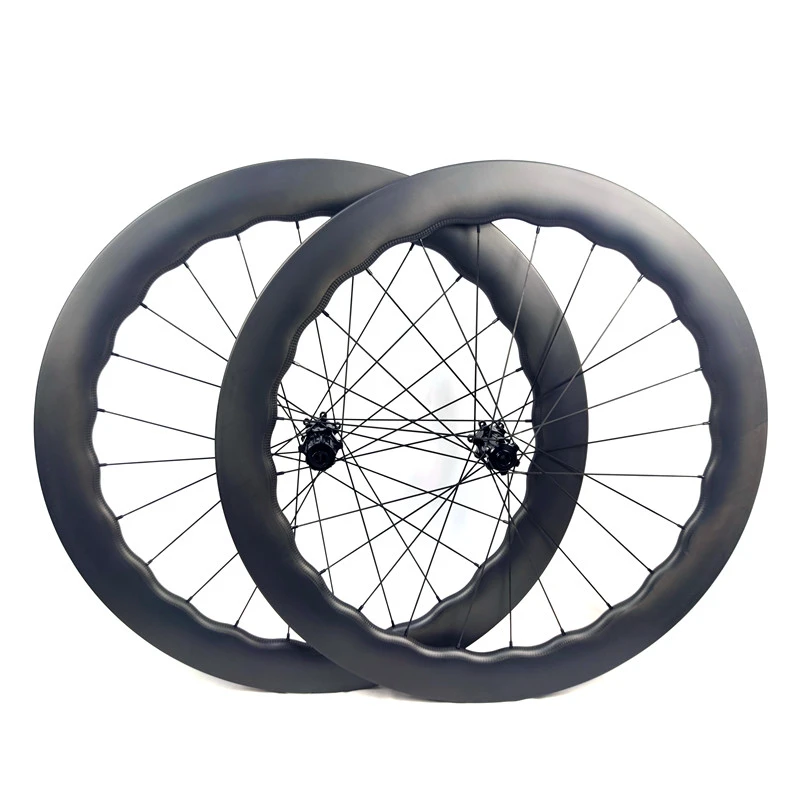

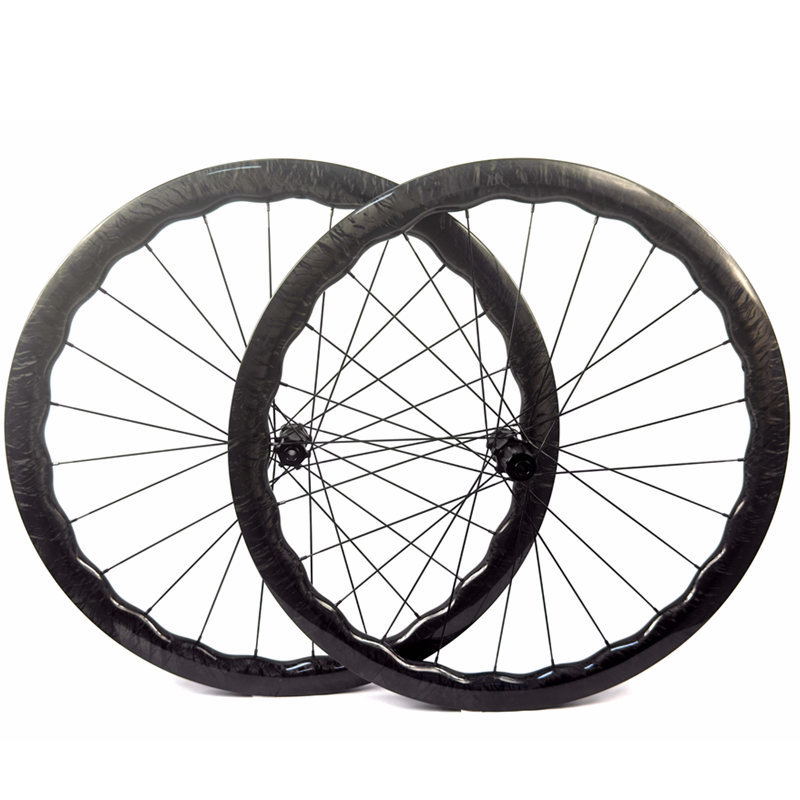

BIKEDOC 700C Bicycle Road Wheels Tubeless Carbon Wheelset Disc brake 28MM Wide

SKU: 25600
28mm wide carbon wheel gravel with internal 21mm ,carbon wheelset can be symmetric and asymmetric .
0.0 (0 Reviews)
2 Sold
$0.00 $675.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • LOGO:
    NO LOGO
    BIKEDOC LOGO
  • Model:
    A283035HK
    A283540HK
    A284045HK
    A284550HK
    286065HK
    284550HK
    284045HK
    262045HK
    266065HK
  • Carbon Weave:
    UD Weave
    Marble Weave
  • Finish:
    Matte
    Shiny
    No Painting
  • Hub Option:
    XR320
    XR240
    DT350S
    DT240S
    DT180S
  • Spoke Option:
    Pillar 1420
    Sapim Cx Ray
    Ti Carbon Spoke
    FJH Aero Spoke
  • Weight Version:
    Standard Weight
    Light Version
  • Nipple Holes:
    External Nipple(4.5mm Hole)
    Internal Nipple(2.5mm Hole)
  • Hub Body:
    Shimano
    XDR
    Please select the information you wantX
Quantity
-
+
  • BIKEDOC 700C Bicycle Road Wheels Tubeless Carbon Wheelset Disc brake 28MM Wide
  • BIKEDOC 700C Bicycle Road Wheels Tubeless Carbon Wheelset Disc brake 28MM Wide
  • BIKEDOC 700C Bicycle Road Wheels Tubeless Carbon Wheelset Disc brake 28MM Wide
  • BIKEDOC 700C Bicycle Road Wheels Tubeless Carbon Wheelset Disc brake 28MM Wide
  • BIKEDOC 700C Bicycle Road Wheels Tubeless Carbon Wheelset Disc brake 28MM Wide
  • Description
  • BIKEDOC
  • FAQ
BIKEDOC 700C Bicycle Road Wheels Tubeless Carbon Wheelset Disc brake 28MM Wide
Product Descreption
Item :Wave Carbon Rim Gravel
Material:Full Carbon Fiber (Toray 700+800)
Tire Opition:Hook Tubeless
Max Spoke Tension:130kg
Profile:Symmetric (0mm),Asymmetric (2.5mm)
Size :700C
Outside Width:28mm
Inside Width:21mm
Carbon Weave:UD ,Marble
Weight Choice:Light Version & Standard Version
Nipple Type: Internal Nipple &External Nipple
Finish:Matte,Shiny ,Paintless
Max Rider Weight (On Flat Ground):Standard 135kg ,Light Version 100kg
Max Tire Pressure:120psi
Usage:All Road
Hub weight for different models:
XR320 hub ,rachet 36t ,345g
XR240 hub,rachet 36t,240g,ceramic bearing
DT350s hub ,rachet 18t,365g
DT240s hub,rachet 18t,320g
DT180s hub ,rachet 18t ,285g
Spoke weight for 1 pair wheelset
FJH aero spoke ,48 pieces ,total 335g ,nipple included
Pillar 1420 spoke ,48 pieces ,total 225g,nipple included
Sapim cx ray spoke ,48 pieces ,total 220g,nipple included
Ti carbon spoke ,48 pieces ,total 120g,nipple included

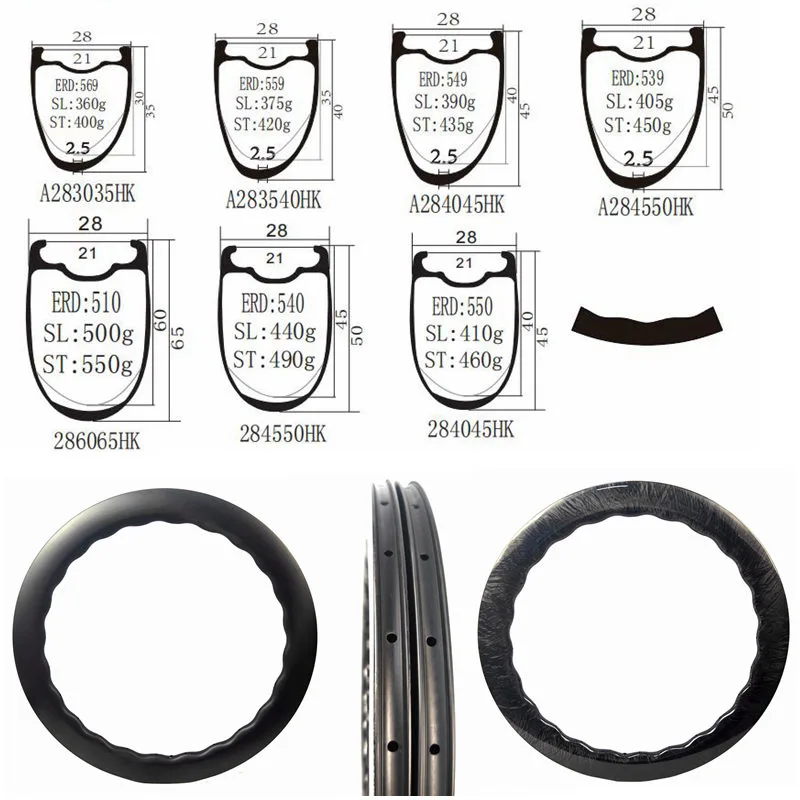

Weight Info For Following Models:

A283035HK ,asymmetric ,erd 569mm,  light version 360g+-15g/1piece ,standard version 400g+-15g/1piece
A283540HK ,asymmetric ,erd 559mm,  light version 375g+-15g/1piece ,standard version 420g+-15g/1piece
A284045HK ,asymmetric ,erd 549mm,  light version 390g+-15g/1piece ,standard version 435g+-15g/1piece
A284550HK ,asymmetric ,erd 539mm,  light version 405g+-15g/1piece ,standard version 450g+-15g/1piece
A286065HK ,symmetric ,  erd 510mm,  light version 500g+-15g/1piece ,standard version 550g+-15g/1piece
A284550HK ,symmetric ,  erd 540mm,  light version 440g+-15g/1piece ,standard version 490g+-15g/1piece
A284045HK ,symmetric ,  erd 550mm,  light version 410g+-15g/1piece ,standard version 460g+-15g/1piece







FAQ
1,Can you give a brief introduction about your facotry?
Yes ,BIKEDOC(Synergy Sports) has 10 years+manufacuture and trading experience .We are based inFujian, China, start from 2011,sell to North America(40.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),Western Europe(15.00%),Northern Europe(15.00%).
We have long time cooperation customers for 3 years+,5 years+,7 years+,9 years+...We supply both OEM and ODM service .Customers can open private moulds here with their own developing designs ,we also supply sliding block service for customers to save opening moulds cost ,for public moulds ,we can put customers’brands on rims or wheels according to their needs.Both carbon rims and complete wheelsets can be customized .
2,why should you buy from us not from other suppliers?
We team have at least 10 years of rich experience in carbon industry ,we are proficient in technology,performance and market of bike parts ,in addition,we get at least 10 years of rich exporting experience ,serving at least 100 countries of customers .Even you are an individual or a bike shop ,we will use our professionalism and sincerity to make you have a nice shopping experience and get a warm aftersale service .
3,What Products can i customize ?
Road,Track,BMX,Fatbike,MTB,Gravel,Cyclocross carbon rims and carbon wheels ,carbon spoke wheels ,carbon frames ,carbon spokes ,carbon handlebars ,wheelbags,bicycle hubs.etc.Write an email ,our sales will give solutions.
4,What is the warranty?
Warranty for carbon rims and frames is for 2 years since from you recieve the products ,other carbon bike parts is for 1 year since from you recieve the products.
5,What is tire pressure for your carbon wheels?
For road wheels,maximum 125 psi,for mtb wheels ,maximum 60 psi,for bmx wheels ,maximum 30 psi .
Who We Are ?
BIKEDOC is a 10+year professional carbon bike parts maker in Xiamen (start from 2011),We have been selling bike parts to North America(40.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),Western Europe(15.00%),Northern Europe(15.00%).

What Can We Supply?
Road,Track,BMX,Fatbike,MTB,Gravel,Cyclocross carbon rims and carbon wheels ,carbon spoke wheels ,carbon frames ,carbon spokes ,carbon handlebars ,wheelbags,bicycle hubs.etc.Write an email ,our sales will give solutions.

Why Should You Choose From BIKEDOC ?
We team have at least 10 years of rich experience in carbon industry ,we are proficient in technology,performance and market of bike parts ,in addition,we get at least 10+ years of rich exporting experience ,serving at least 100 countries of customers .Even you are an individual or a bike shop ,we will use our professionalism and sincerity to make you have a nice shopping experience and get a warm aftersale service .

What Is Our Advantage?
Stable Employees
The operators,QC inspectors  and our trade clerks work here since from 2014(Facotry started),they are very skifully and professional which are of great importance to keep a stable quality of carbon rims .
High Grade Material
Imported Japnese Toray 700, Toray 800,Toray 1000 high grade carbon materials are used for new light version carbon rims and with our own special making technique.
Sliding Block Service
Some customers open moulds here with their own design ,we use sliding block to help them cut the mould cost while with their own personalized design .
Rich Experience
Synergy Sports bagan in carbon industry since from 2008,we have rich experience about both in manufacutre and exporting experiece which can help you avoid bad experience while u are searching new suppliers .
Strong Team Test Wheel Quality
Our team did monster tests on  our  new light weight version wheelsets in Harsh Environments ,they won lots of local races in different countries, some qualify themselves for uci championship race.
Before-Aftersale Service
When customers are choosing good supliers ,we are choosing sincere buyers. We do our best to make the wheel quality and warranty service satisfied
What Products can I customize ?

Road,Track,BMX,Fatbike,MTB,Gravel,Cyclocross carbon rims and carbon wheels ,carbon spoke wheels ,carbon frames ,carbon spokes ,carbon handlebars ,wheelbags,bicycle hubs.etc.Write an email ,our sales will give solutions.
Q:What is the aftersale service?
A:Rims/Wheels bought from our company can be warranty for 2 years .please use your bicycle in a correct way ,dont crack the rims  just to test its stiffness and then ask for a warranty ,we dont accept the man-made sabotage .Warranty is only for problem because of manufacture reson . For normal breaking of rim ,please send here detailed broken photos including id number beside the valve holes.We will replace a new rim for you .

Q:What is the lead time?
A:Preparing time for carbon Rims or Wheelsets  is for 14 working days ,if you want to use it for urgent races , please welcome to contact foren before ordering wheels.

Q:What is tire pressure for your carbon wheels?

A:For road wheels,maximum 125 psi,for mtb wheels ,maximum 60 psi,for bmx wheels ,maximum 30 psi .

Q:What is spoke tension?

A:Our carbon wheels can do maximum 130kg spoke tension .

Q:Are your clincher rims tubeless ready?

A:Yes ,all our bikedoc carbon rims can be used as both tubeless and clincher , they are compatible.
