Option:

Symmetric/CX3035HL

Asymmetric/CX3035EHL
Brake System:

Disc Brake

HTG Rim Brake

Customized Brake Surface+USD15
Carbon Weave:

UD

3K Flat

3K Twill

12K Twill
Finish:

Matte

Shiny

No Painting
Spoke Holes:

16H

18H

20H

21H

24H

28H

32H

36H

Custom Holes
Nipple Holes:

External Nipple(4.5mm Hole)

Internal Nipple(2.5mm Hole)
Weight Version:

Standard Version

Light Version+USD15
Center Channel Holes:

With Outside Spoke Holes

Without Outside Spoke Holes
Water Drill Hole:

With Drill Hole

No Drill Hole
Unit:

Piece

Quantity:

Add to Favorites (0)

1/1

Description
BIKEDOC
FAQ

Most gravel product is aimed squarely at the rider looking for a pleasant day out in the country—and there’s nothing wrong with that. But for those of us looking to toe the start line in the morning, stay with the group at the front, and contest the win, the 30mm width gravel is the weapon of choice, Its optimized for ride feel and comfort, and it is a bit sharper.Not uncomfortable by any means, but more aerodynamic, leaner, and just a little meaner. Tubeless-ready, and its 24mm -25mm internal width supports tires between 28mm and 45mm well.

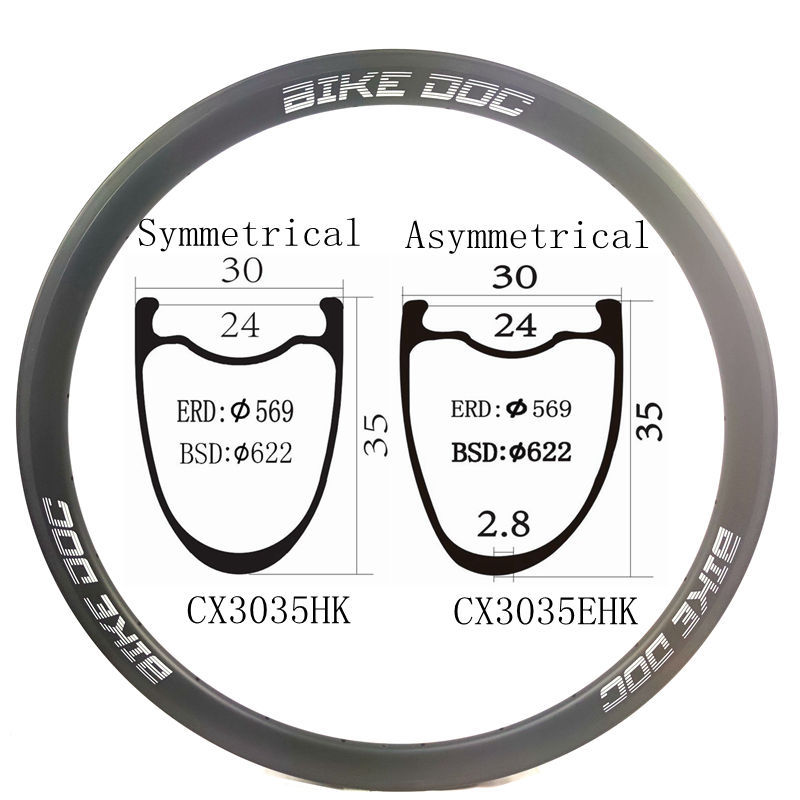

CX3035HL= Symmetric
CX3035EHL=Asymmetric

Option/Model	CX3035HL	CX3035EHL
Light Version	390+/-15g	390+/-15g
Standard Version	440+/-15g	440+/-15g

Product Descreption

Model No.:Symmetrical/CX3035HL, Asymmetrical/CX3035EHL

Material:Full Carbon Fiber (Toray 700+800),T1000 Customizable

Tire Opition:Hookless Tubeless

Max Spoke Tension:130kg

Profile:Symmetric and Asymmetric

Size :29''/700C(ETRTO 622MM)

ERD:569mm(Including Nipple Head)

Outside Width:30mm

Inside Width:25mm

Rim Height:35mm

Carbon Weave:3K Flat,3K Twill,12K Twill,UD

Weight Choice:Light Version & Standard Version

Nipple Type: Internal Nipple &External Nipple

Finish:Matte,Shiny ,No Painting

Max Rider Weight (On Flat Ground):Standard 135kg ,Light Version 100kg

Max Tire Pressure:120psi

Usage:All Road (Road ,Gravel ,Cyclocross)

Who We Are ?
BIKEDOC is a 10+year professional carbon bike parts maker in Xiamen (start from 2011),We have been selling bike parts to North America(40.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),Western Europe(15.00%),Northern Europe(15.00%).
What Can We Supply?
Road,Track,BMX,Fatbike,MTB,Gravel,Cyclocross carbon rims and carbon wheels ,carbon spoke wheels ,carbon frames ,carbon spokes ,carbon handlebars ,wheelbags,bicycle hubs.etc.Write an email ,our sales will give solutions.
Why Should You Choose From BIKEDOC ?
We team have at least 10 years of rich experience in carbon industry ,we are proficient in technology,performance and market of bike parts ,in addition,we get at least 10+ years of rich exporting experience ,serving at least 100 countries of customers .Even you are an individual or a bike shop ,we will use our professionalism and sincerity to make you have a nice shopping experience and get a warm aftersale service .
What Is Our Advantage?
Stable Employees
The operators,QC inspectors and our trade clerks work here since from 2014(Facotry started),they are very skifully and professional which are of great importance to keep a stable quality of carbon rims .
High Grade Material
Imported Japnese Toray 700, Toray 800,Toray 1000 high grade carbon materials are used for new light version carbon rims and with our own special making technique.
Sliding Block Service
Some customers open moulds here with their own design ,we use sliding block to help them cut the mould cost while with their own personalized design .
Rich Experience
Synergy Sports bagan in carbon industry since from 2008,we have rich experience about both in manufacutre and exporting experiece which can help you avoid bad experience while u are searching new suppliers .
Strong Team Test Wheel Quality
Our team did monster tests on our new light weight version wheelsets in Harsh Environments ,they won lots of local races in different countries, some qualify themselves for uci championship race.
Before-Aftersale Service
When customers are choosing good supliers ,we are choosing sincere buyers. We do our best to make the wheel quality and warranty service satisfied
What Products can I customize ?
Road,Track,BMX,Fatbike,MTB,Gravel,Cyclocross carbon rims and carbon wheels ,carbon spoke wheels ,carbon frames ,carbon spokes ,carbon handlebars ,wheelbags,bicycle hubs.etc.Write an email ,our sales will give solutions.

Q:What is the aftersale service?
A:Rims/Wheels bought from our company can be warranty for 2 years .please use your bicycle in a correct way ,dont crack the rims just to test its stiffness and then ask for a warranty ,we dont accept the man-made sabotage .Warranty is only for problem because of manufacture reson . For normal breaking of rim ,please send here detailed broken photos including id number beside the valve holes.We will replace a new rim for you .
Q:What is the lead time?
A:Preparing time for carbon Rims or Wheelsets is for 14 working days ,if you want to use it for urgent races , please welcome to contact foren before ordering wheels.

Q:What is tire pressure for your carbon wheels?

A:For road wheels,maximum 125 psi,for mtb wheels ,maximum 60 psi,for bmx wheels ,maximum 30 psi .

Q:What is spoke tension?

A:Our carbon wheels can do maximum 130kg spoke tension .

Q:Are your clincher rims tubeless ready?

A:Yes ,all our bikedoc carbon rims can be used as both tubeless and clincher , they are compatible.
