Logo:

No Logo

BIKEDOC
Model:

Symmetric

Asymmetric
Carbon Weave:

UD

3K Flat

3K Twill

12K Twill
Weight:

Standard Version

Light Version(UD Only)+USD15
Spoke Hole:

24H

28H

32H

36H

Custom Holes
Nipple Holes:

External Nipple Hole 4.5mm

Internal Nipple Hole 2.5mm
Center Channel Holes:

With Outside Spoke Holes

Without Outside Spoke Holes
Finish:

Matte

Shiny

No Painting
Unit:

Piece

Quantity:

Add to Favorites (0)

1/1

Description
BIKEDOC
FAQ

Basic
Model:MTB2723
Rim Type:Hookless Tubeless
Material:Toray700+Toray800
Warranty:2 Years
Description

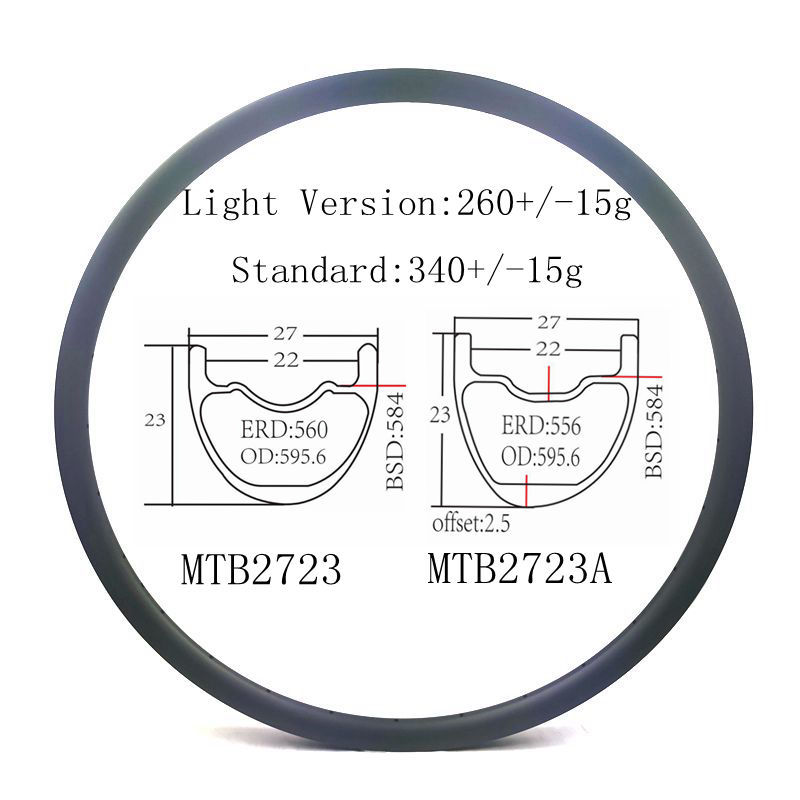

Size:27.5inch (650B)
Outside Width:27mm
Internal Width:22mm
Height:23mm
ERD(Effective Rim Diameter):560mm (Including Nipple Head)
BSD(Bead Seated Diameter):584mm
Weight:
Light Version(UD Only):260+/-15g
Standard Version(3K,UD,12K):340+/-15g
External Nipple Hole:4.5mm
Internal Nipple Hole:2.5mm
Valve Hole Diameter:6.5mm
Spoke Holes:16-36Holes
Recommendation
Maximum Rider Weight:125kg
Maximum Spoke Tension:130kg
Maximum Tire Pressure:60Psi
Usage:XC / Marathon / Trail

Who We Are ?
BIKEDOC is a 10+year professional carbon bike parts maker in Xiamen (start from 2011),We have been selling bike parts to North America(40.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),Western Europe(15.00%),Northern Europe(15.00%).
What Can We Supply?
Road,Track,BMX,Fatbike,MTB,Gravel,Cyclocross carbon rims and carbon wheels ,carbon spoke wheels ,carbon frames ,carbon spokes ,carbon handlebars ,wheelbags,bicycle hubs.etc.Write an email ,our sales will give solutions.
Why Should You Choose From BIKEDOC ?
We team have at least 10 years of rich experience in carbon industry ,we are proficient in technology,performance and market of bike parts ,in addition,we get at least 10+ years of rich exporting experience ,serving at least 100 countries of customers .Even you are an individual or a bike shop ,we will use our professionalism and sincerity to make you have a nice shopping experience and get a warm aftersale service .
What Is Our Advantage?
Stable Employees
The operators,QC inspectors and our trade clerks work here since from 2014(Facotry started),they are very skifully and professional which are of great importance to keep a stable quality of carbon rims .
High Grade Material
Imported Japnese Toray 700, Toray 800,Toray 1000 high grade carbon materials are used for new light version carbon rims and with our own special making technique.
Sliding Block Service
Some customers open moulds here with their own design ,we use sliding block to help them cut the mould cost while with their own personalized design .
Rich Experience
Synergy Sports bagan in carbon industry since from 2008,we have rich experience about both in manufacutre and exporting experiece which can help you avoid bad experience while u are searching new suppliers .
Strong Team Test Wheel Quality
Our team did monster tests on our new light weight version wheelsets in Harsh Environments ,they won lots of local races in different countries, some qualify themselves for uci championship race.
Before-Aftersale Service
When customers are choosing good supliers ,we are choosing sincere buyers. We do our best to make the wheel quality and warranty service satisfied
What Products can I customize ?
Road,Track,BMX,Fatbike,MTB,Gravel,Cyclocross carbon rims and carbon wheels ,carbon spoke wheels ,carbon frames ,carbon spokes ,carbon handlebars ,wheelbags,bicycle hubs.etc.Write an email ,our sales will give solutions.

Q:What is the aftersale service?
A:Rims/Wheels bought from our company can be warranty for 2 years .please use your bicycle in a correct way ,dont crack the rims just to test its stiffness and then ask for a warranty ,we dont accept the man-made sabotage .Warranty is only for problem because of manufacture reson . For normal breaking of rim ,please send here detailed broken photos including id number beside the valve holes.We will replace a new rim for you .
Q:What is the lead time?
A:Preparing time for carbon Rims or Wheelsets is for 14 working days ,if you want to use it for urgent races , please welcome to contact foren before ordering wheels.

Q:What is tire pressure for your carbon wheels?

A:For road wheels,maximum 125 psi,for mtb wheels ,maximum 60 psi,for bmx wheels ,maximum 30 psi .

Q:What is spoke tension?

A:Our carbon wheels can do maximum 130kg spoke tension .

Q:Are your clincher rims tubeless ready?

A:Yes ,all our bikedoc carbon rims can be used as both tubeless and clincher , they are compatible.
